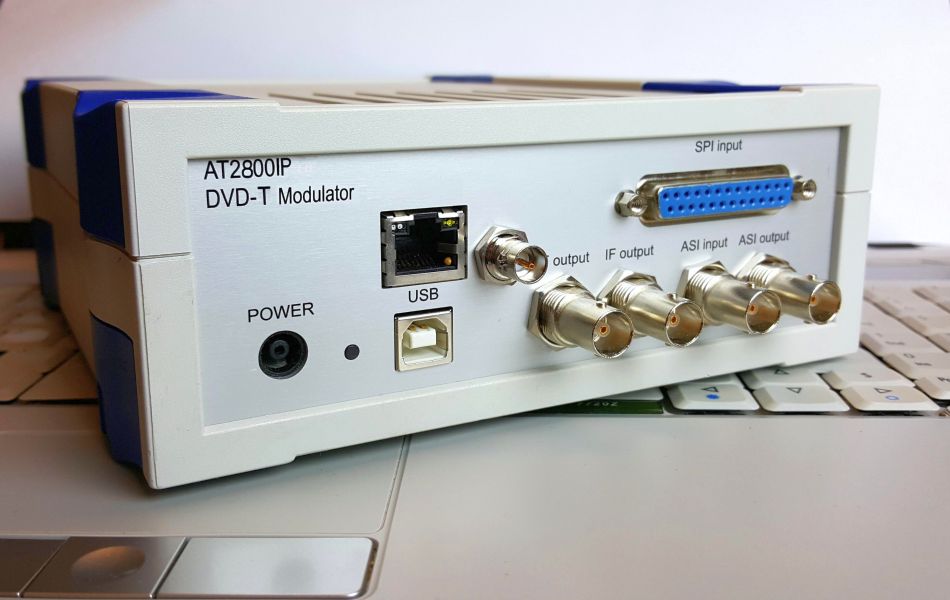

AT2800IP
Multi Standard Modulator
USB MODE: DVB-T/H/C(QAM-A/B/C)
IP MODE: DVB-T/H
VHF & UHF Up-converter
IF & RF outputs
DVB-ASI/SPI inputs
|
 |
 |
|
|
|
|
| |
|
Standard Features:
Two modes of operation :
- USB Mode : In this mode the device works as a USB based DVB-T/H/C modulator, exactly the same as Alitronika's AT2780USB device,
with the TS being modulated coming from the Harddisk of the PC or from an external source via DVB-ASI or DVB-SPI inputs
- IP Mode : In this mode the device operates as a STAND-ALONE DVB-T/H modulator,
with the TS being modulated coming from an IP source.
IP Mode
Input & Outputs
DVB-IP.
RF & IF Outputs.
DVB-ASI output for monitoring the modulated TS file.
Encapsulation of the TS data for Ethernet uses IP and the User Datagram Protocol (UDP), with Real-time Transport Protocol (RTP) encapsulation and COP3 FEC. Dedicated hardware performs the encapsulation, which maximizes the throughput and latency. The device can accept traffic from Ethernet network and recover TS data. For RTP encapsulated data, the device incorporates buffer to absorb network jitter and correct for packet reordering and packet duplication. COP3 FEC-based lost packet recovery is available. For multiple TS interfaces, the AT60IP, individually maps each one to a specific UDP/IP socket (a combination of IP address and UDP port). All other encapsulation parameters can also be individually configured per TS. Network jitter correction. Supports constant bit rate ASI output. IP address assignment from DHCP server and static IP address. IP address also configurable through the web interface. Configuration for Time To Live (TTL) for Multicast. PCR, continuity counter correction. Packet time and date correction.

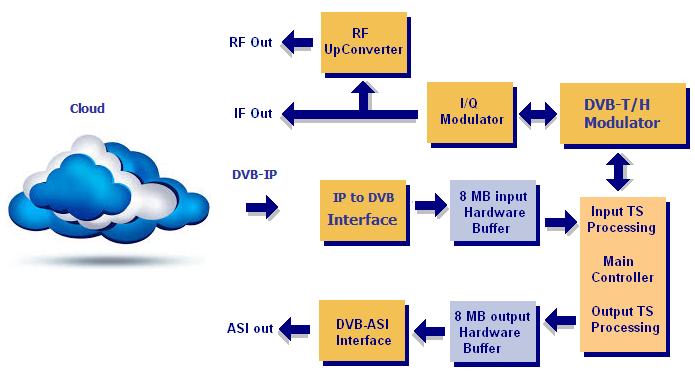

Block Diagram:
AT2800IP the Key to the Cloud
AT2800IP => DVB-IP input, DVB-T/H ( RF & IF ) outputs
USB Mode
Combined COFDM, QAM & ATSC Modulator with VHF & UHF Upconverter.
High Speed USB 2.0
Windows Drivers & SDK
Linux Drivers
Accompanied by DVSStationIP Alitronika's Application Software.
Supports DVB According to Standard A1010 Rev1 and EN50083.
Modulation of Transport Stream files from USB, DVB-ASI/SPI.
All modulation processes are carried out by the hardware so that there is no load on the PC processor,
So there is no need for an expensive high performance PC.
Supports Burst or continuous modes, 188 and 204 packet sizes.
Bitrates:
- DVB-T/H : 4.98 MB/s to 31.67 MB/S.
- DVB-C : 14 MB/s to 65 MB/S.
- ATSC : 10.76 MBaud to 19.30 MBaud.
Input
DVB-ASI input.
Output
RF Output.
IF Output.
DVB-ASI output for monitoring the modulated TS file.

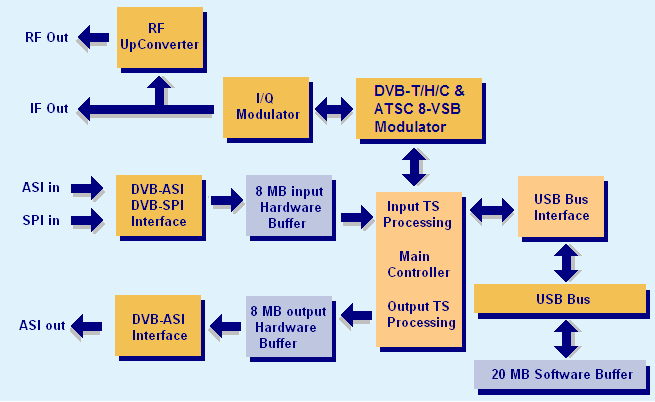

Block Diagram:

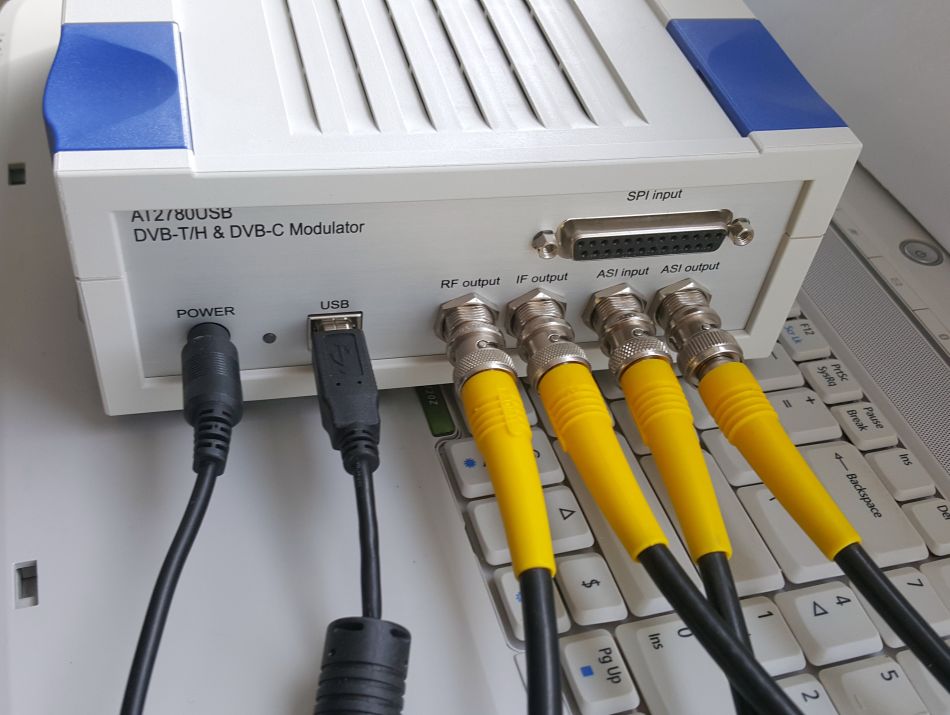

Connections:
Application:
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs the AT2800IP is an ideal solution for a number of applications such as: Development Tools for DVB-T/H/C Receiver R&D. IP to DVB Gateway. DVB-T/H/C & ATCS Transport Stream Generation. Stand alone COFDM ( Terrestrial ), QAM ( Cable TV ) & ATSC signal generator for Test & Validation. Demonstration and Trade Shows. DVB-T/H/C & ATSC output for OEM product.
Specification:
On Board Buffer:16 Mbytes. IF Connector:75 Ohms BNC. IF Output Frequency: 35-37 MHz or 69-71MHz adjustable in 1Hz steps. RF Connector:75 Ohms BNC. RF Output Frequency Range:50MHz to 1000MHz. RF Output Power over bandwidth: -15dBm to -50dBm, adjustable in 0.5dB steps. Channel Bandwidth: 5MHz, 6MHz, 7MHz, 8MHz. COFDM Spectrum:2k,4k and 8k carriers non-hierarchical. Standards: COFDM according EN 300 744. Modulation Modes:QPSK, 16QAM and 64QAM. Guard Interval Modes:1/32, 1/16, 1/8 and 1/4. FEC Code Rates:1/2, 2/3, 3/4,5/6, 7/8. Spectral Inversion: Both inverted and non-inverted. Channel Bandwidth: 6MHz, 8MHz. Standards:QAM according EN 300 744. Modulation Modes:16QAM, 32QAM, 64QAM, 128QAM and 256QAM. Channel Bandwidth: 6MHz. Standards: A/53 8-VSB.DVB-ASI Input/Output Connectors:75 Ohms BNC. DVB-ASI Output Signal level:1.0Vp-p nominal. DVB-ASI Output Clock: 270 MHz. DVB-ASI Input return loss: 15dB. DVB-ASI Output Bit Rate: 0 to 214Mbit/s ( up to Max. allowable bitrate for DVB-T/H/C, ATSC modulation). DVB-SPI Connector: 25-pin sub-D. DVB-SPI Input Level: LVDS. DVB-SPI Input Bit Rate:0 to 108 Mbit/s ( up to Max. allowable bitrate for DVB-T/H/C, ATSC modulation).
| |
|
Application Software:
DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.Play Screen=> In normal operating conditions
Record Screen => In normal operating conditions
ATSC Settings
DVB-C Settings
DVB-T Settings
DVB-T Guard Interval Settings
DVB-T Modulation Mode Settings
DVB-T FEC Settings
DVB-T Bandwidth Settings
RF Settings
IF output frequency is selectable between 35MHz & 70MHz
The application software provides the user with many functions & features such as :
PID Filtering
Bit, Byte & Packet error insertion
TOT & TDT selection
PlayBack in loops, sub-loops.......
Hardware Working Regiters are accessable for monitoring
Among the "Goodies" are a Video Viewer
Hex Editor
A DVB to IP Player/Converter
As well as the Integrated Quick TS Analyzer, TSReader support these devices.
| |
|
Photo Gallery:
USB Modulators
| |
|
| |
|
