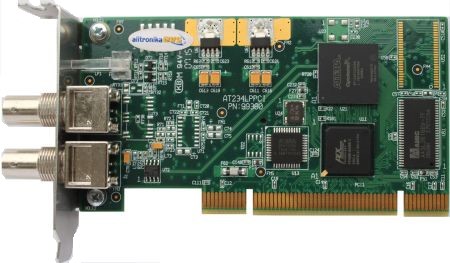

AT30LPPCI

  Transport Stream Player

  DVB-ASI Output

  Free Application Software

  PCIe with an adaptor

spade spade

  Downloads:

spade spade

  Standard Features:

 DVB-ASI Output Device
 PCI 2.2, 32 bit, 33/66MHz 3.3V
 Bus Master DMA, Scatter /Gather Interface Protocol
 Windows Drivers & SDK
 Linux Drivers
 Free Application Software,DVSStation3
 Supports DVB According to Standard A1010 Rev1 and EN50083
 Supports 188 & 204 byte or Arbitrary Packet Sizes
 Output
 Programmable Output Bit Rate
 Two DVB-ASI outputs ( BNC )
 Can output True and Inverted signals
 Supports Burst Mode
 Null packet insertion by Hardware
 PCR, continuity counter correction
 Packet time and date correction
 Error insertion

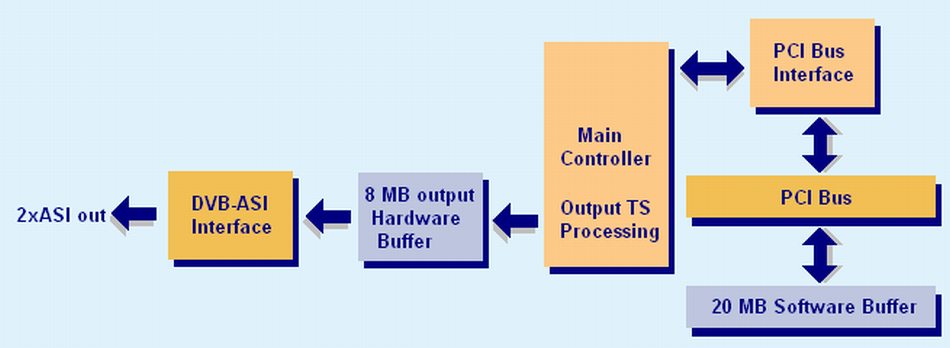

  Block Diagram:

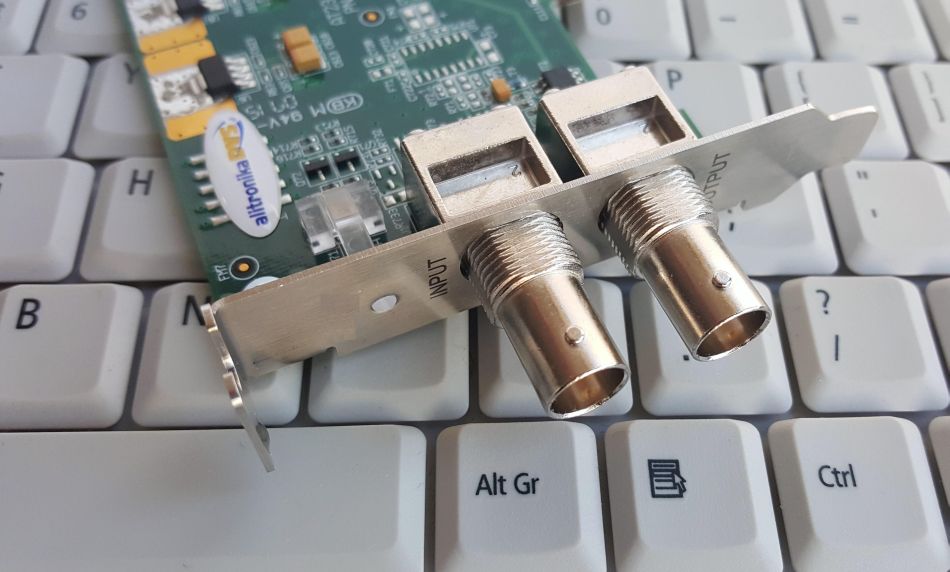

  Connections:

  Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT30LPPCI is an ideal solution for a number of applications such as:
Development Tools
DVB to IP Gateway
Universal Interface for Digital Video or MPEG-II Transport Stream Playing and Processing
Video on Demand Server
Transport Stream Test Generator
High Speed Serial Data Link
Software Based MPEGII Encoders and Decoders

  Specification:

On Board Buffer:8 Mbytes
External DVB-ASI Connector: 75 Ohms BNC
Output Signal level: 1.0Vp-p nominal
DVB-ASI Input/Output Bit Rate: 0 to 214 Mbit/s
Bit Rate Stability:
   - Standard: +/- 25ppm
   - Maximum: +/- 1ppm
DVB-ASI Output Clock: 270 MHz
Size WxL: 60mmx120mm

spade

  Application Software:

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

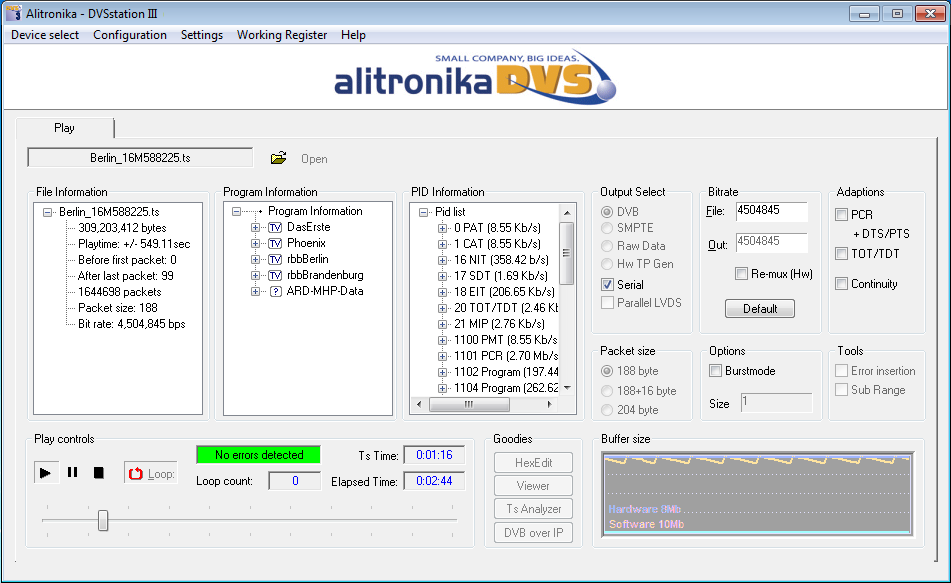

Play Screen

The application software provides the user with many functions & features such as :

Bit, Byte & Packet error insertion

TOT & TDT selection

PlayBack in loops, sub-loops.......

Hardware Working Regiters are accessable for monitoring

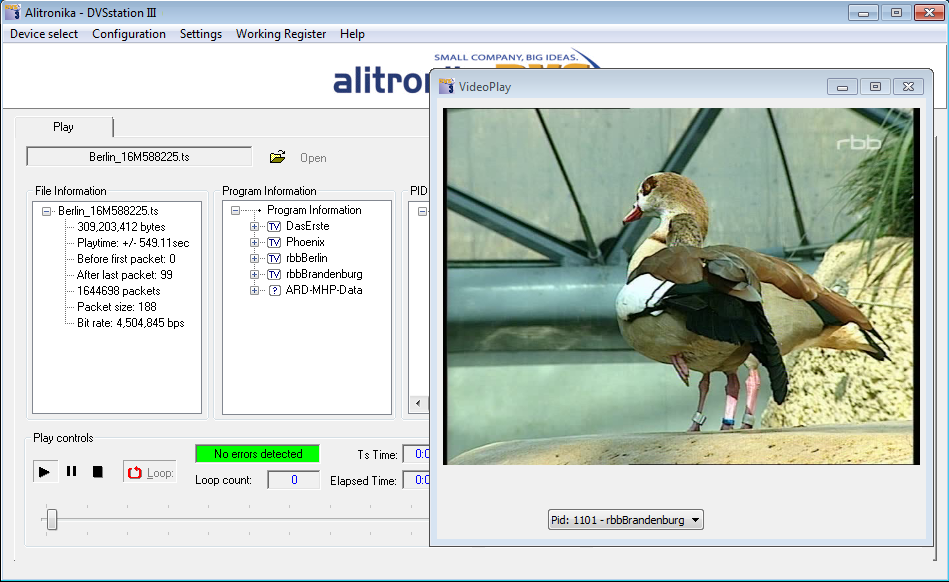

Among the "Goodies" are a Video Viewer

Hex Editor

A DVB to IP Player/Converter

As well as the Integrated Quick TS Analyzer, TSReadersupport these devices.

spade

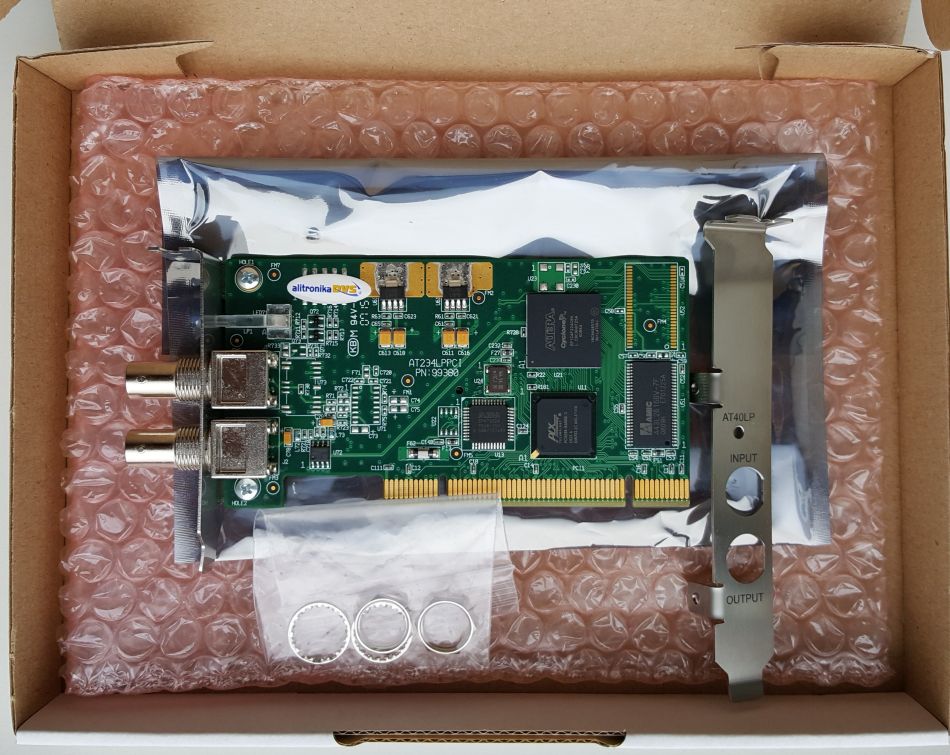

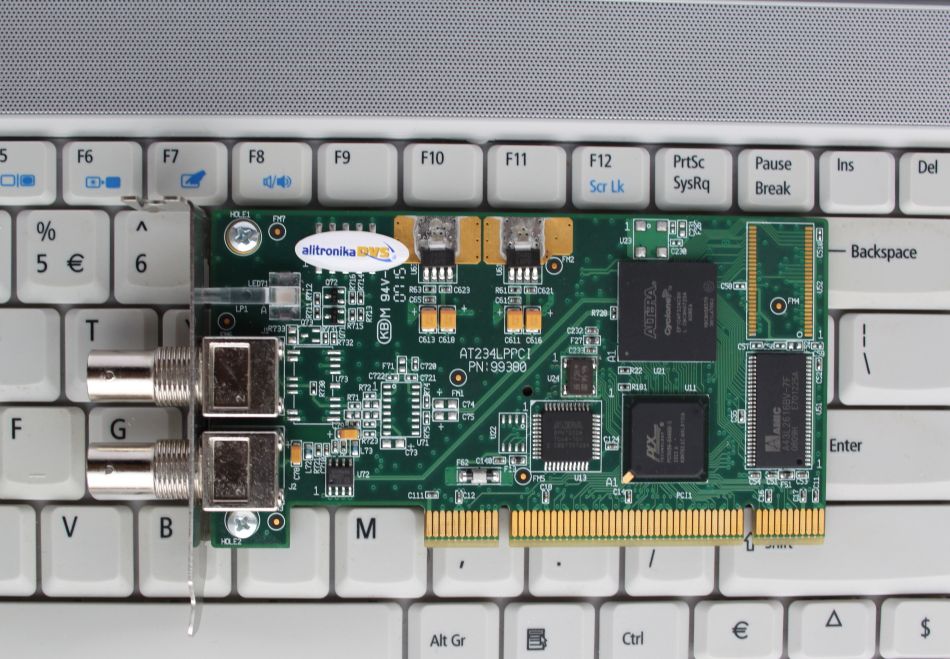

  Photo Gallery:
