AT660USB

  Multi Standard

  Receiver/Recorder/Converter/Player

  DVB-S2/S to USB, ASI & SPI

  DVB-ASI, DVB-SPI Outputs

  Free Application Software

spade spade

  Downloads:

spade spade

  Standard Features:

Combined DVB-S2/S Input and DVB-ASI/SPI Output
High Speed USB 2.0
Windows Drivers & SDK
Linux Drivers
Free Application Software, DVSStation3
  Input
DVB-S2/S Direct TV Compliant QPSK Reception
Demodulation Standards: DVB-S, DVB-S2, DVB/DSS
Input Frequency Range: 950 MHz to 2150 MHz
Symbol Rate: 2 Mbaud to 45 Mbaud
Channel Bitrate: 190Mbit/s
Supports 188, 204 Transport Packet Sizes
  Output
RF Loop Through Output
Simultaneous two Serial (ASI) & Parallel (SPI) Outputs
Supports DVB According to Standard A1010 Rev1 & EN50083

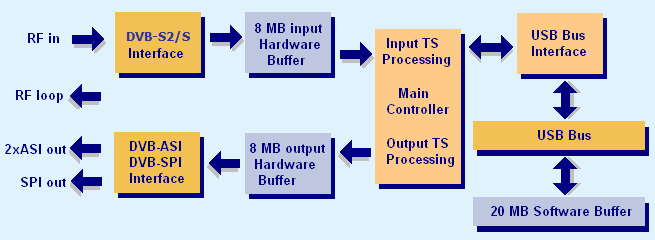

  Block Diagram:

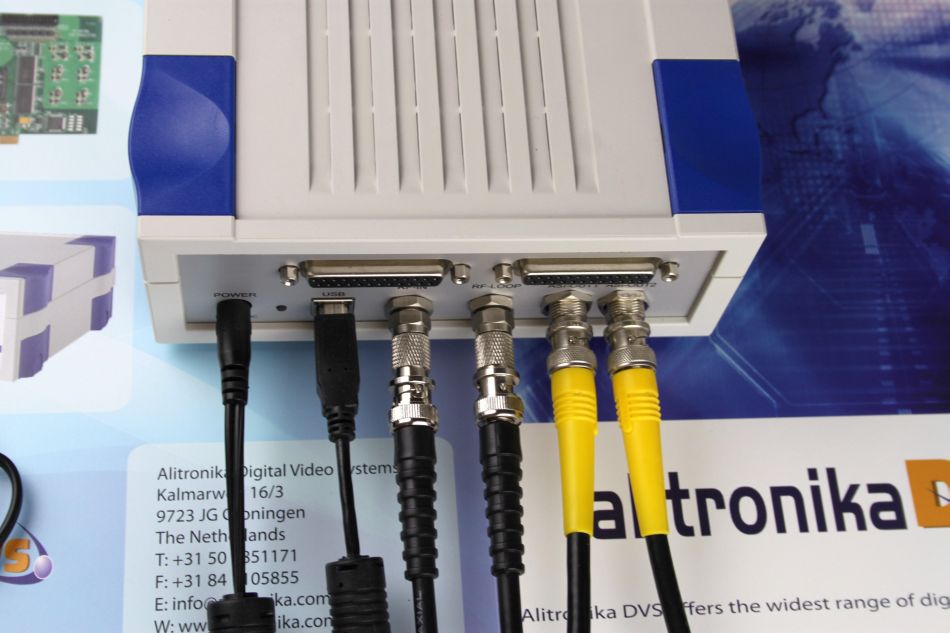

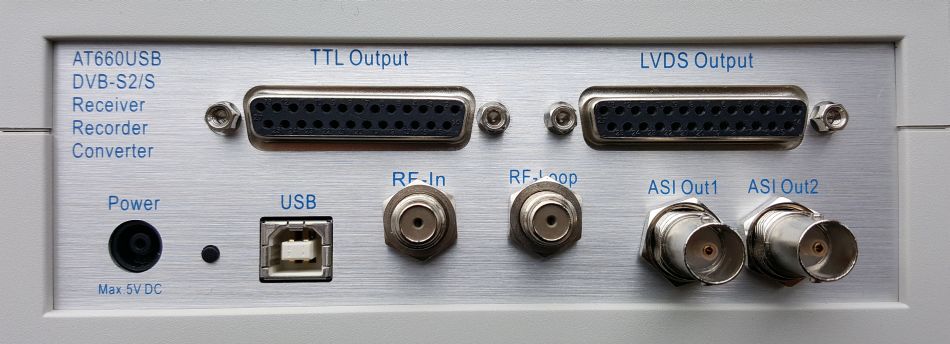

  Connections:

  Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs the AT660USB is an ideal solution for a number of applications such as:
Development Tools
DVB to IP Gateway
DVB-S2/S to DVB-ASI/SPI Conversion
MPEG-II Transport Stream Recording,Monitoring & Processing

  Specification:

On Board Buffer: 16 Mbytes
RF Tuner Connector:
  - 75 Ohms F Type
Loop Through Connector:
  - 75 Ohms F Type
Input Frequency Range: 950 MHz to 2150 MHz
Input Signal Level: -65dBm to -25dBm @ 27.5 Mbaud
Maximum Symbol Rate:
  - QPSK/LDPC/BCH: 45MSPS, 8PSK/LDPC/BCH:30MSPS, DVB:2-45MSPS
DisEqc: DisEqC 2.X
Standards: DVB-S2/S & Direct TV
Demodulation Standard: DVB-S2 & DVB/DSS compliant
Modulation Method:
  - DVB-S:QPSK
  - DVB-S2: QPSK, 8PSK, 16APSK & 32APSK
Supported Code Rate:
  - QPSK: 1/4,1/3,2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,8/10
  - 8PSK: 3/5,2/3,3/4,4/5,5/6,8/9,9/10
  - 16APSK: 2/3,3/4,4/5,5/6,8/9,9/10
  - 32APSK: 3/4,4/5,5/6,8/9,9/10
DVB-ASI Connector: 75 Ohms BNC
Output Signal level: 1.0Vp-p nominal
DVB-SPI Connector: 25-pin sub-D
DVB-ASI Output Bit Rate: 0 to 214 Mbit/s
DVB-SPI Output Bit Rate: 0 to 108 Mbit/s
DVB-ASI Output Clock: 270 MHz
DVB-SPI Output Clock: 0 to 13.5 MHz
DVB-SPI Output Level: LVDS

  spade

  Application Software:

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

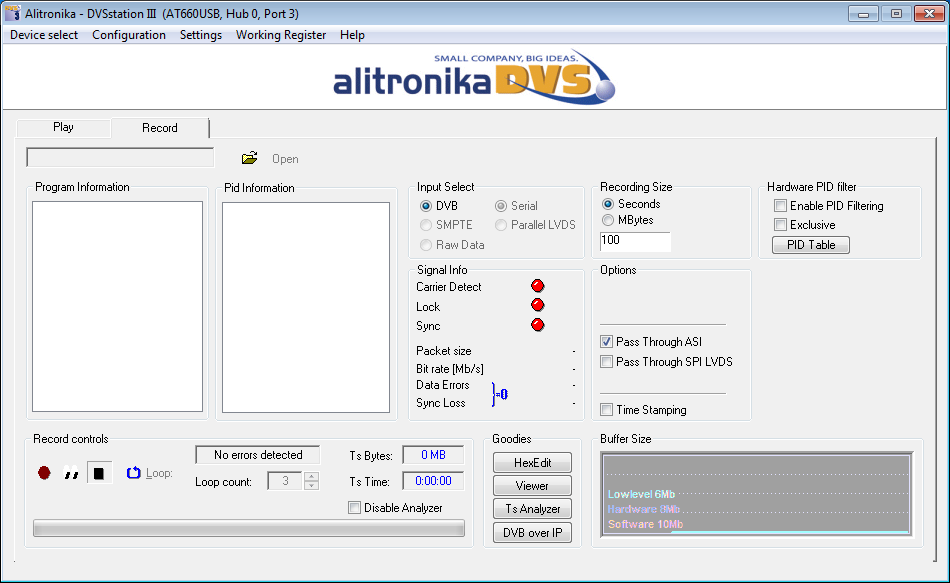

Record Screen => Before correct RF & LNB settings are selected.

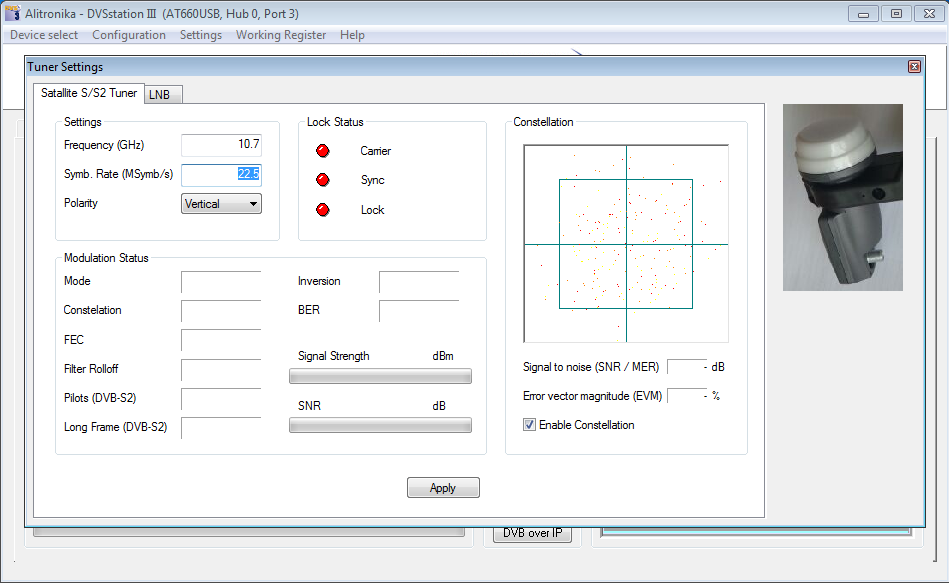

DVB-S2/S Tuner Settings => Shows Errors before all settings are selected

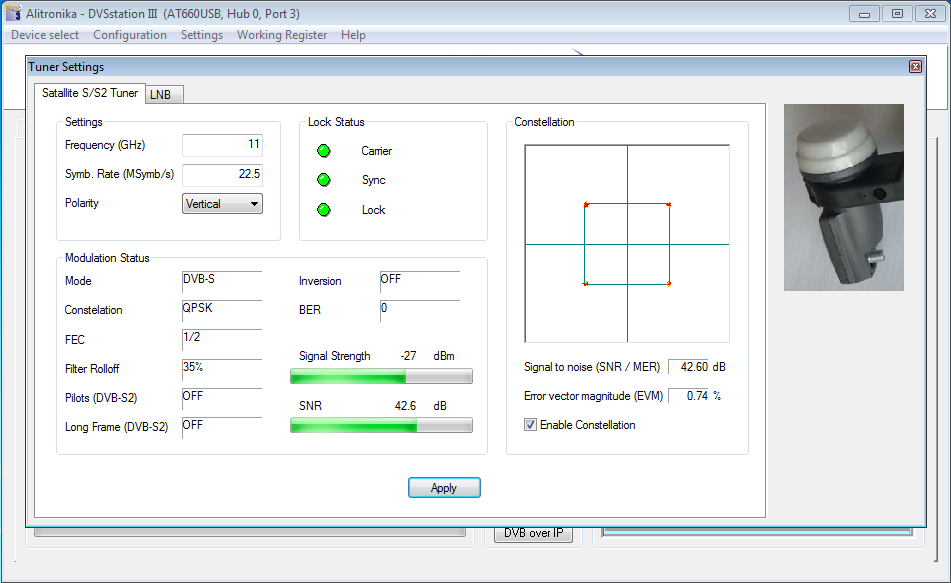

DVB-S2/S Tuner Settings => With all correct settings

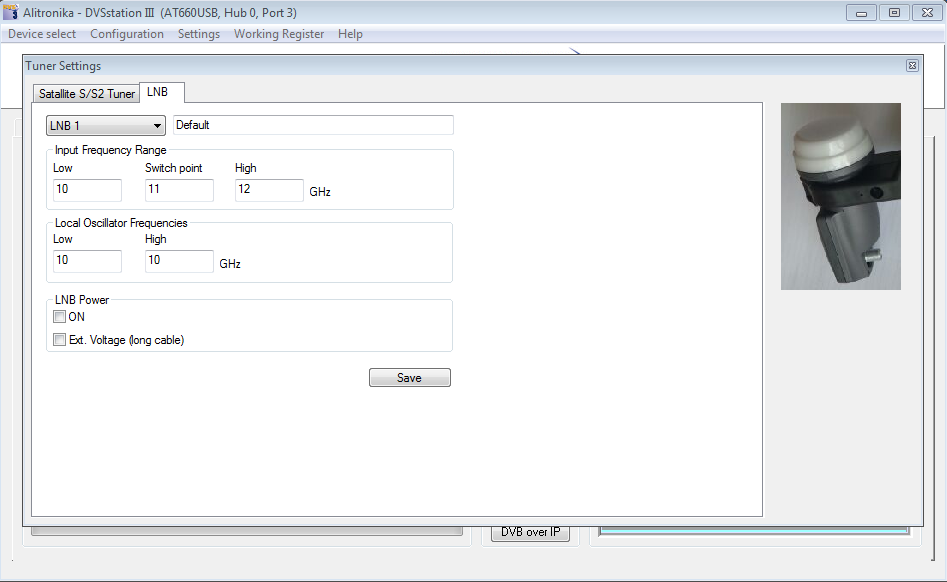

LNB Settings => LNB power can be activated when connected to a LNB.

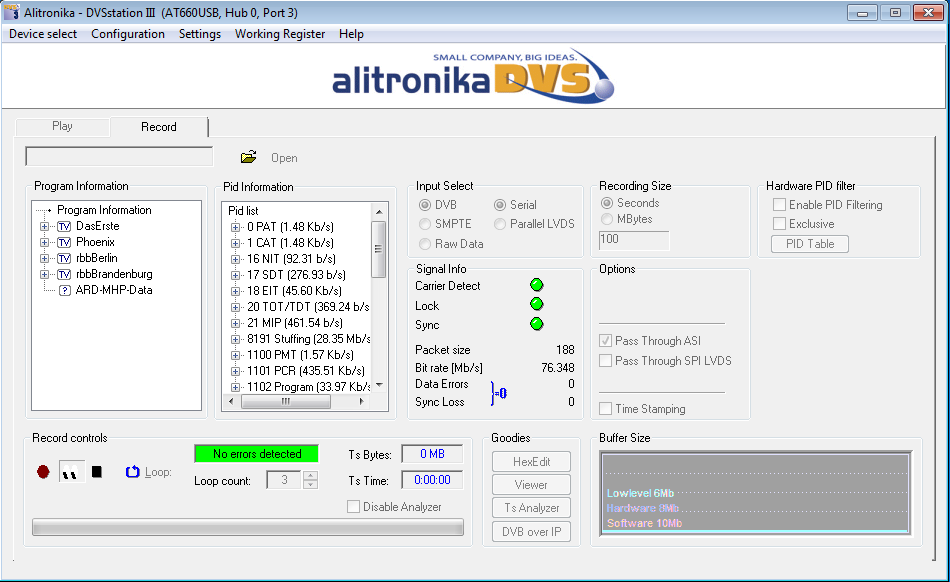

Record Screen => In normal operating conditions

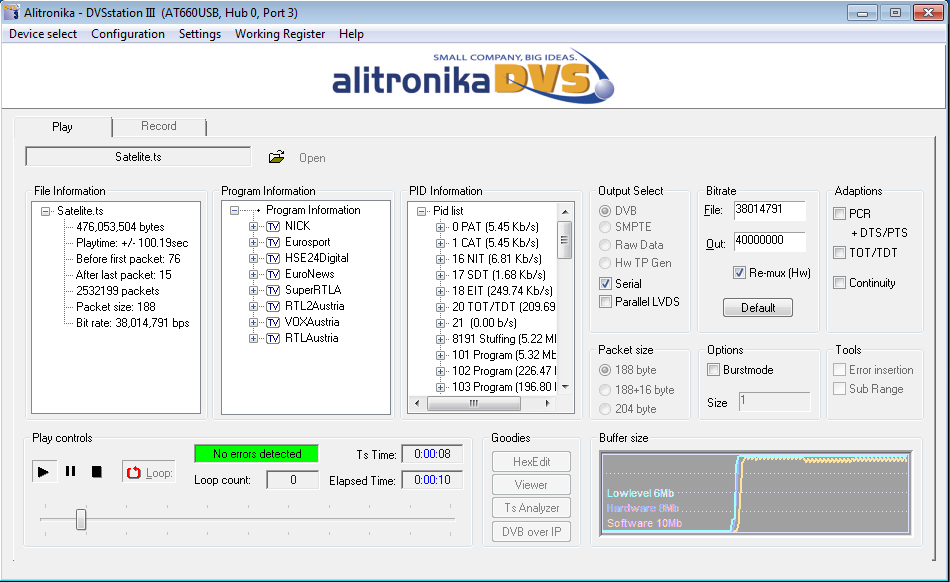

Play Screen

The application software provides the user with many functions & features such as :

PID Filtering

Hardware Working Regiters are accessable for monitoring

Among the "Goodies" are a Video Viewer

Hex Editor

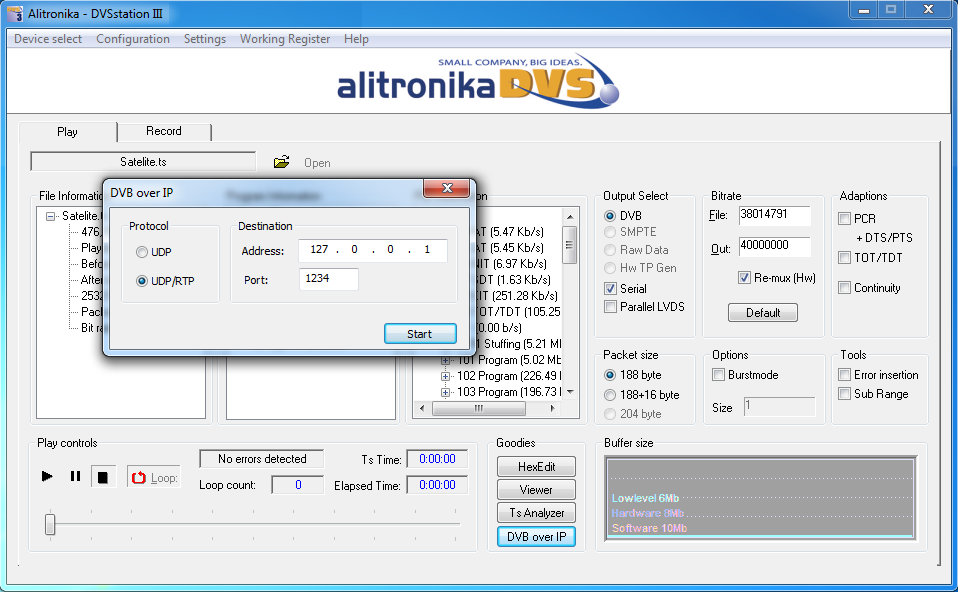

A DVB to IP Player/Converter

As well as the Integrated Quick TS Analyzer, TSReadersupport these devices.

spade

  Photo Gallery:

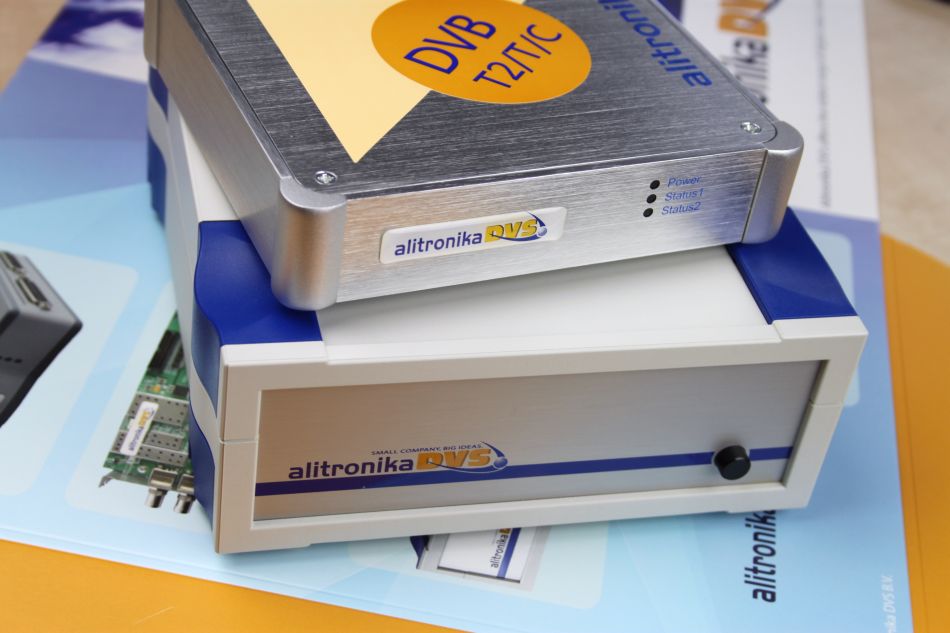

  USB Receivers/Recorders
